Key Elevator Features by Type

Each elevator system operates differently, and the technical details can help you decide which one suits your project. This page outlines the core components, drive systems, space requirements, and performance characteristics of our traction, hydraulic, and winding drum models.

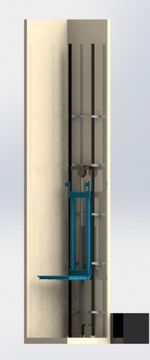

Traction Elevators

Our most popular model

Energy-efficient, whisper-quiet, and ideal for both new homes and remodels. Traction systems deliver a smooth, comfortable ride and a refined appearance that fits any style of home.

Key Features:

• Two custom-formed guide rails for increased stability
• 3 cables for safer suspension
• 950-lbs capacity with up to 15 sq. ft. cab size
• Emergency shut off disconnect
• Phone in the elevator
• Handrail inside the cab
• Smooth-riding
• Up to 40 ft. per minute travel speed
• Up to 50 ft. travel distance
• Can accommodate up to 4 landings
• Emergency battery lowering

• Homing device
• Cab gate & door safety devices
• Electro-mechanical door interlocks
• Overrun switch
• 2hp motor use on all cab styles
• Call/send
• Limited 2-year warranty
• No machine room needed
• Space needed for equipment 33W x 24H outside of the shaft
• Overhead space needed 105”
• Less maintenance than a hydraulic elevator

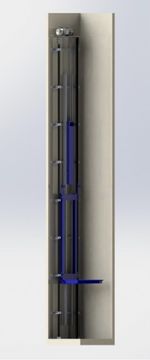

Hydraulic Elevators

Built for strength and reliability

Hydraulic systems offer powerful lifting with a gentle stop. Perfect for larger homes or higher travel distances, they’re a long-lasting choice for performance and comfort.

Key Features:

• System delivers a smooth ride and quiet operation
• Space-saving guiding system
• 950-lbs capacity with up to 15 sq. ft. cab size
• Up to 40 ft. per minute travel speed
• Travel up to 50 ft.
• Can accommodate up to 4 landings
• Emergency battery lowering

• Cab gate & door safety devices
• Overrun switch
• Emergency shut off disconnect
• Handrail inside the elevator cab
• Electro-mechanical door interlocks
• Machine room needed for controller, disconnects and pump.
• Limited 2-year warranty
• Overhead space needed 96”

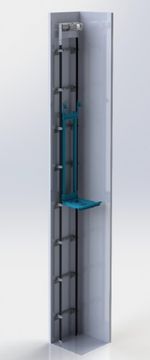

Winding Drum Elevators

Simple and
cost-effective

Winding drum elevators are a traditional design trusted for decades. Compact and dependable, they’re a great solution for smaller spaces or retrofit installations.

Key Features:

• Two custom-formed guide rails for increased stability
• 2 cables for safer suspension
• 950-lbs capacity with up to 15 sq. ft. cab size
• Emergency shut off disconnect
• Phone in the elevator
• Handrail inside the cab
• Smooth riding
• Up to 40 ft. per minute travel speed
• Up to 50 ft. travel distance
• Can accommodate up to 4 landings
• Emergency battery lowering
• Homing device

• Cab gate & door safety devices
• Electro-mechanical door interlocks
• Overrun switch
• 3hp motor use on all cab styles
• Call/send
• Limited 2-year warranty
• No machine room needed
• Space needed for equipment 33W X 24H outside of the shaft
• Overhead space needed 105”
• Less maintenance than a hydraulic elevator
