Specifications & Downloads
This page is your central hub for product information. From spec sheets to installation resources, you’ll find documents designed to help you plan with confidence.
Home Elevators
Residential Elevator Prints Hoistway Diagrams

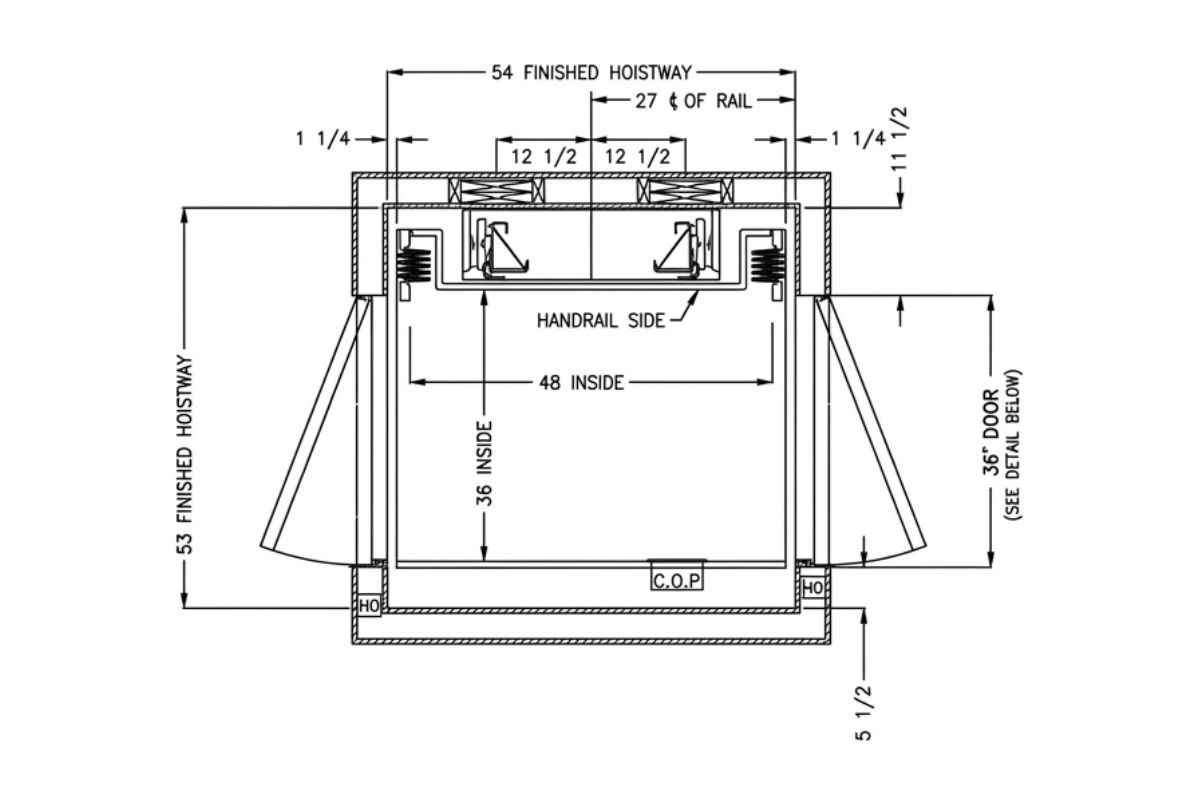

54-x-53-hoistway-2door-opposite-1

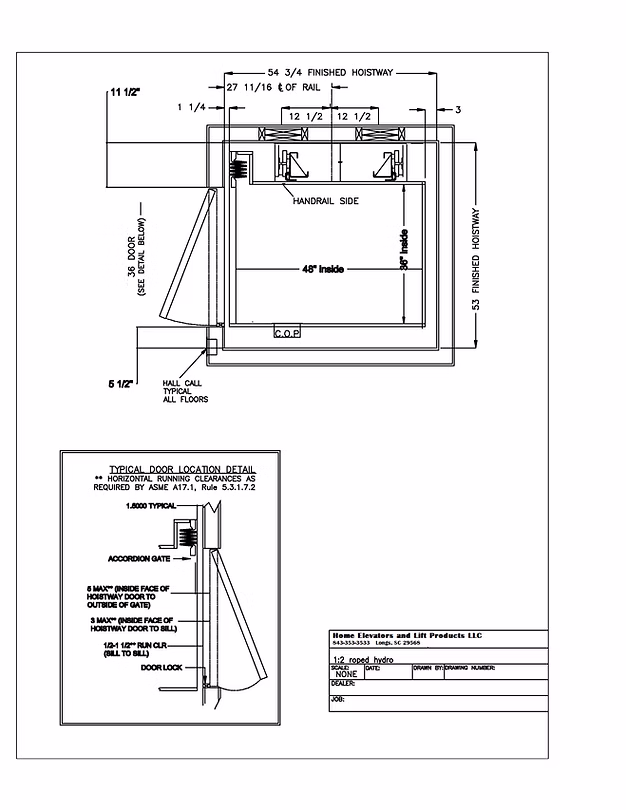

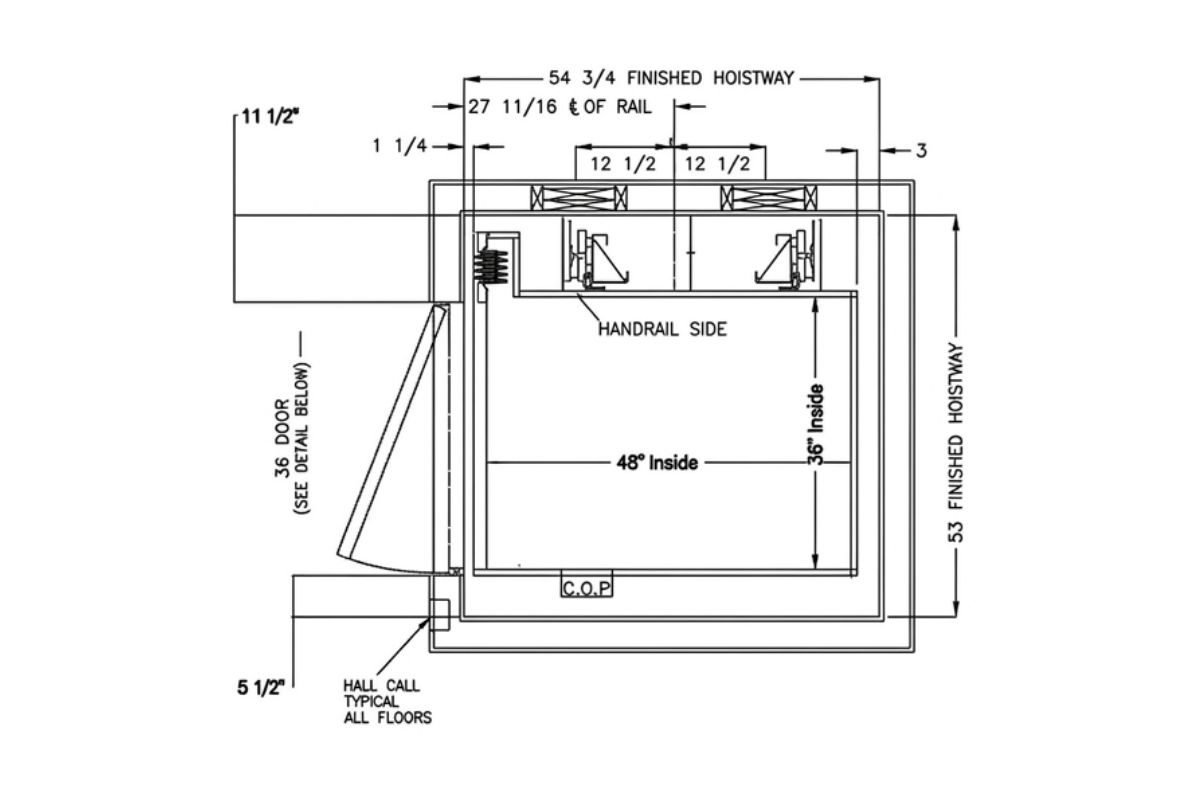

54-x-53-hoistway-rails-left-1

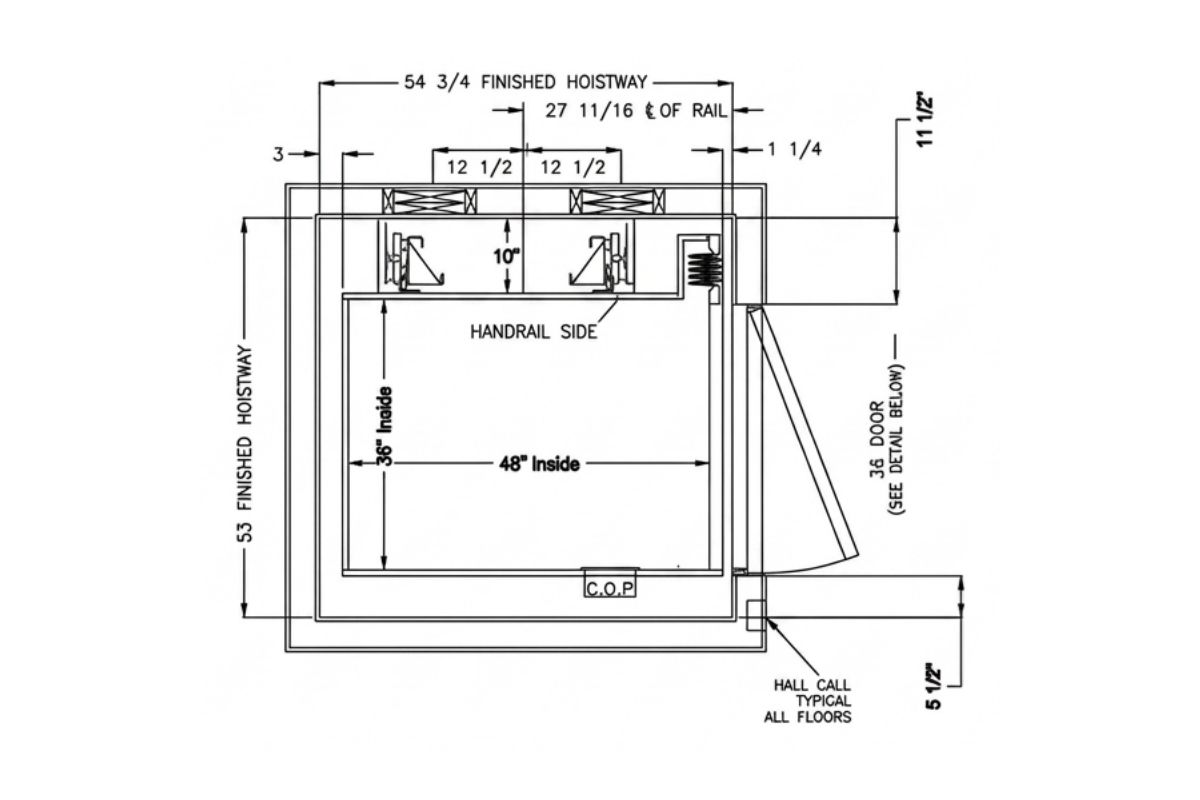

54-x-53-hoistway-rails-right-1

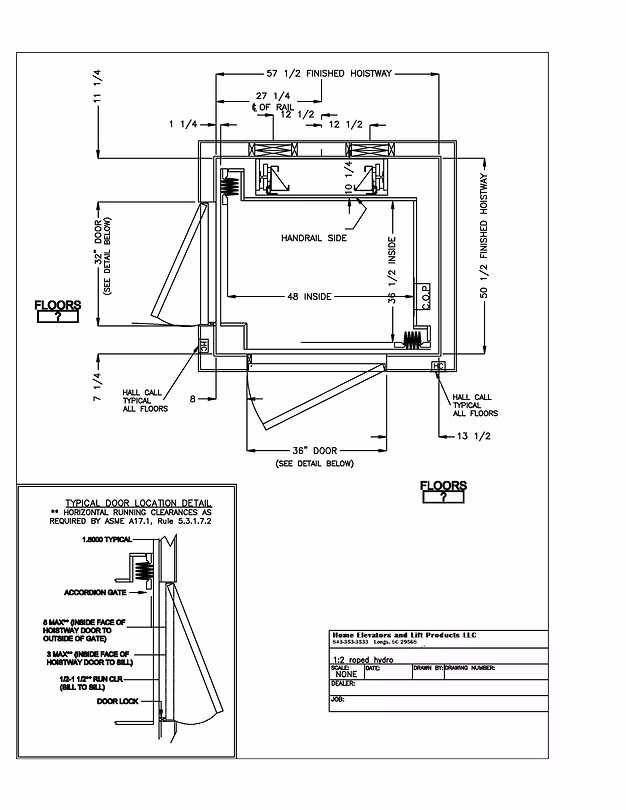

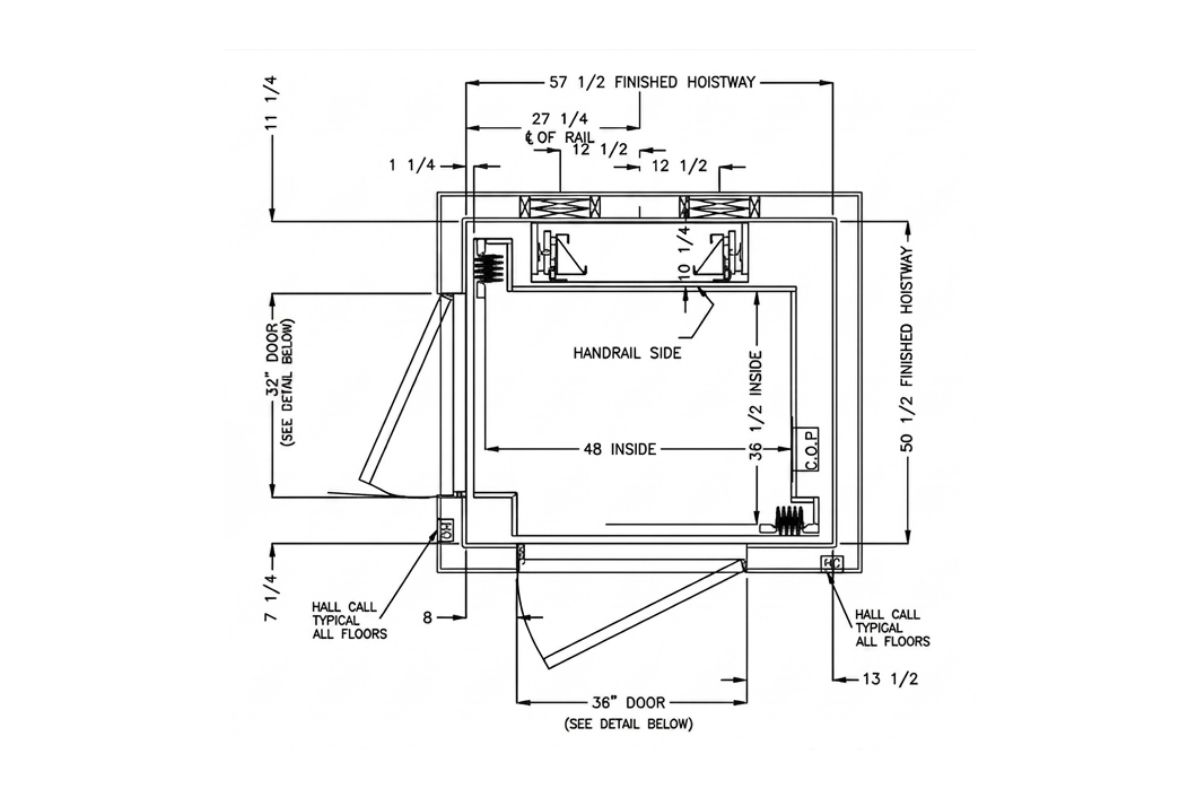

57-x-50-hoistway-2door-90degree-1

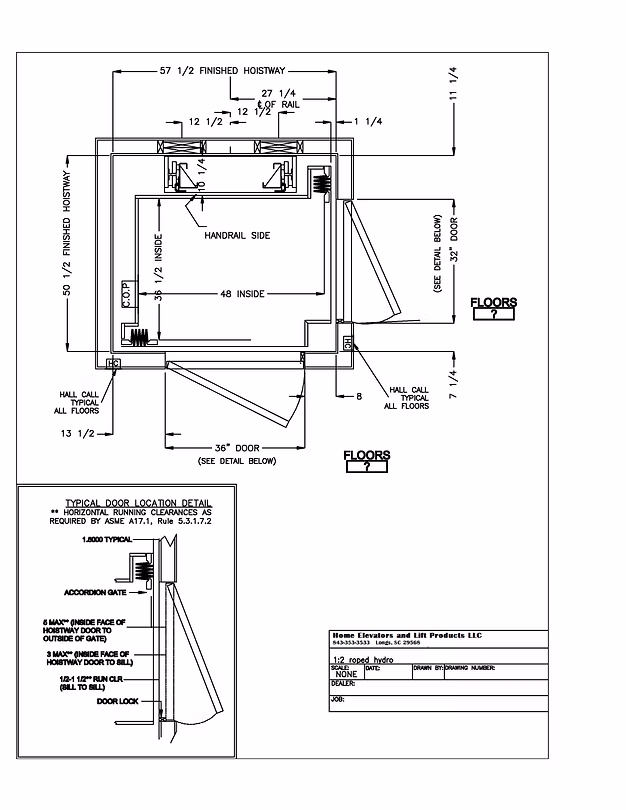

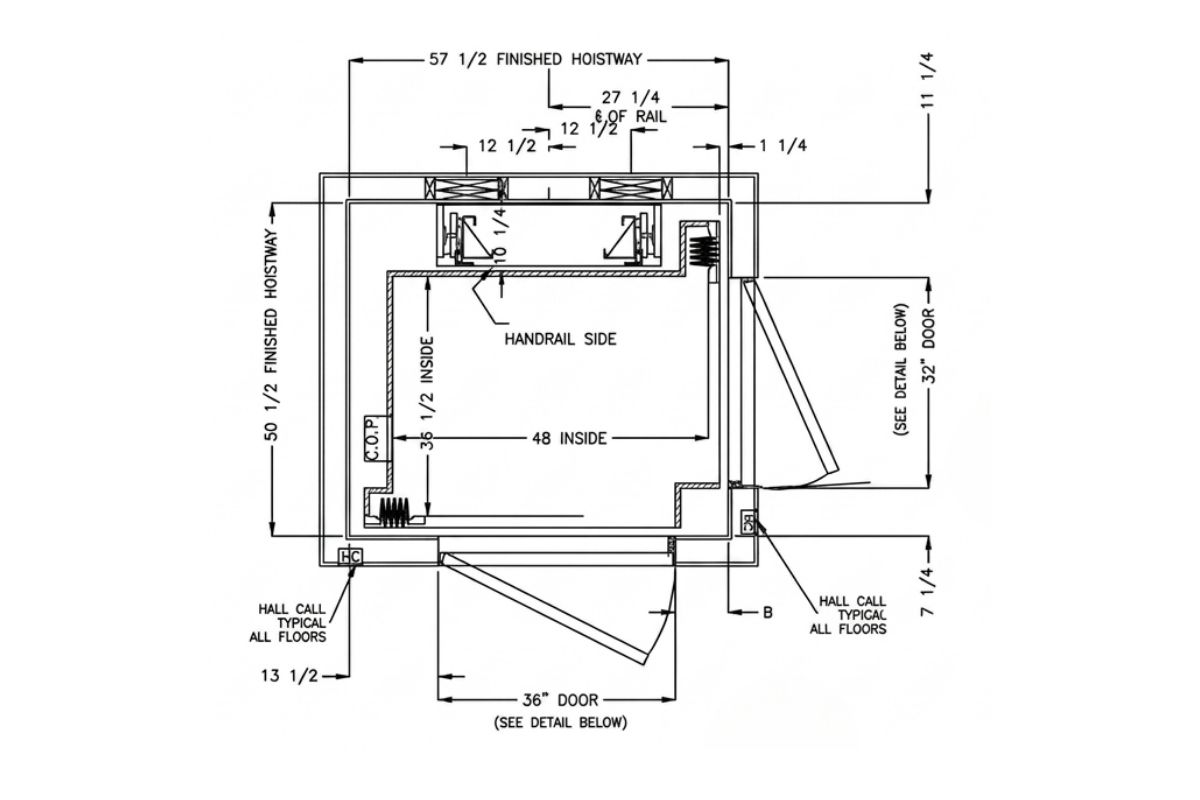

57-x-50-hoistway-rails-back-2

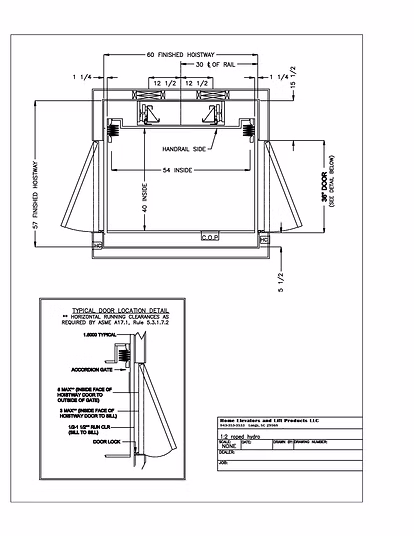

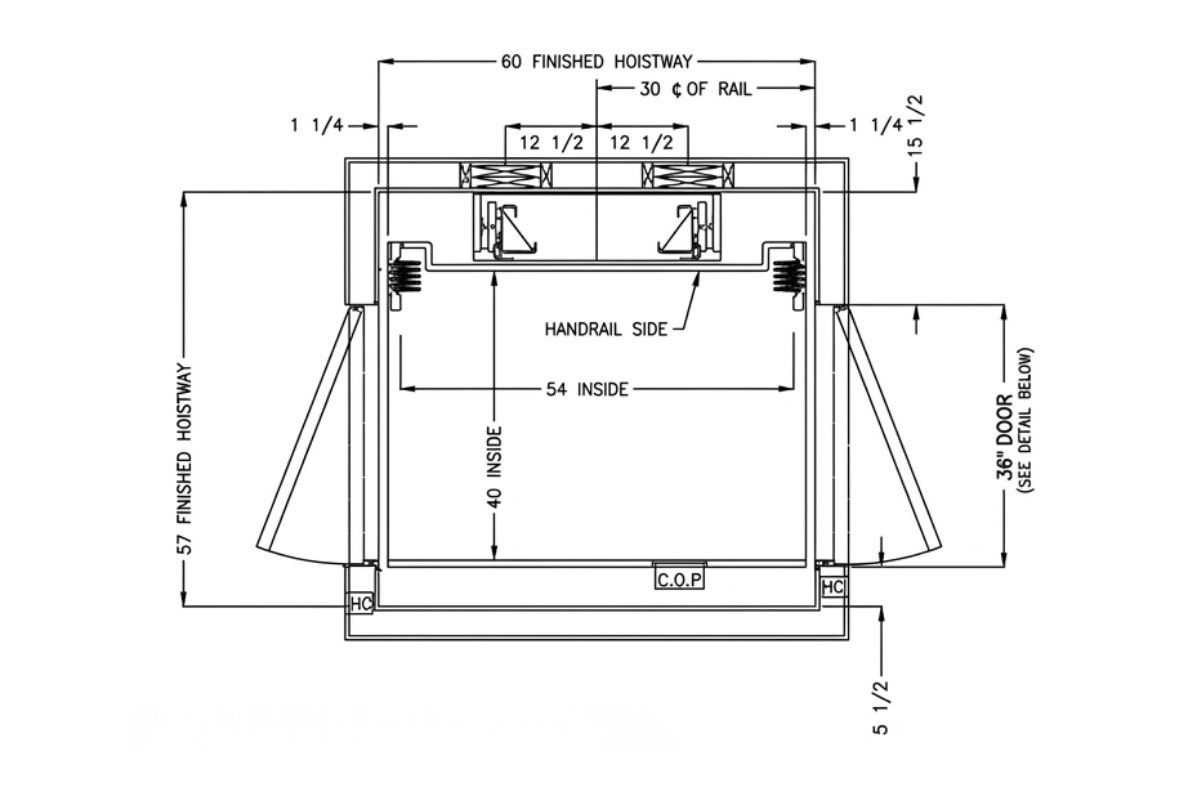

60-x-57-hoistway-2door-opposite-1

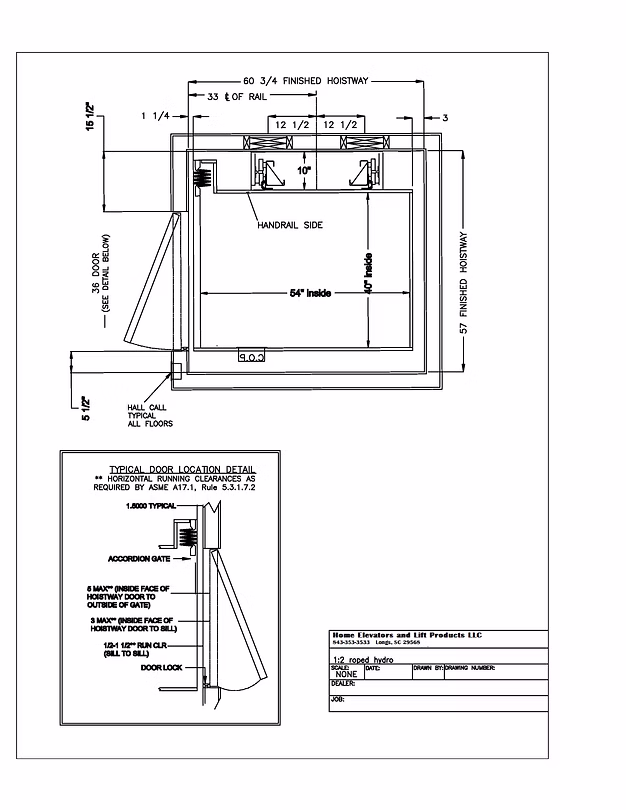

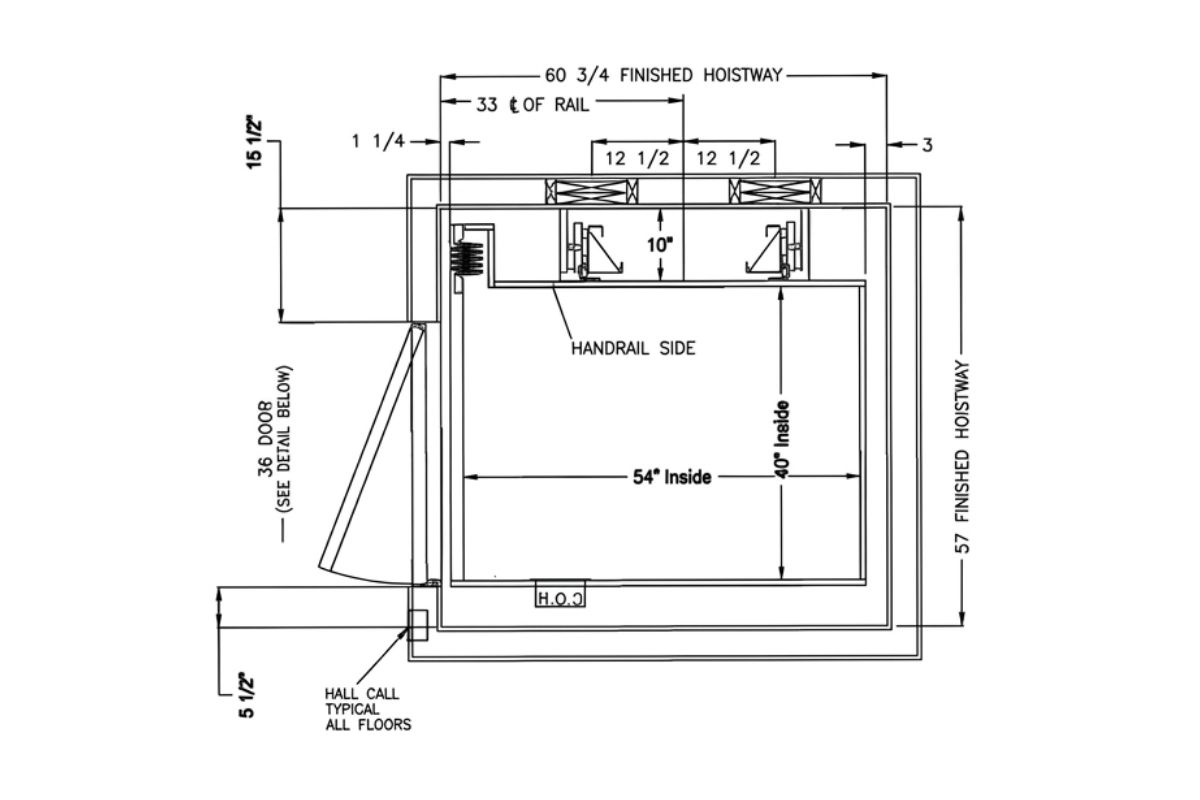

60-x-57-hoistway-rails-left-1

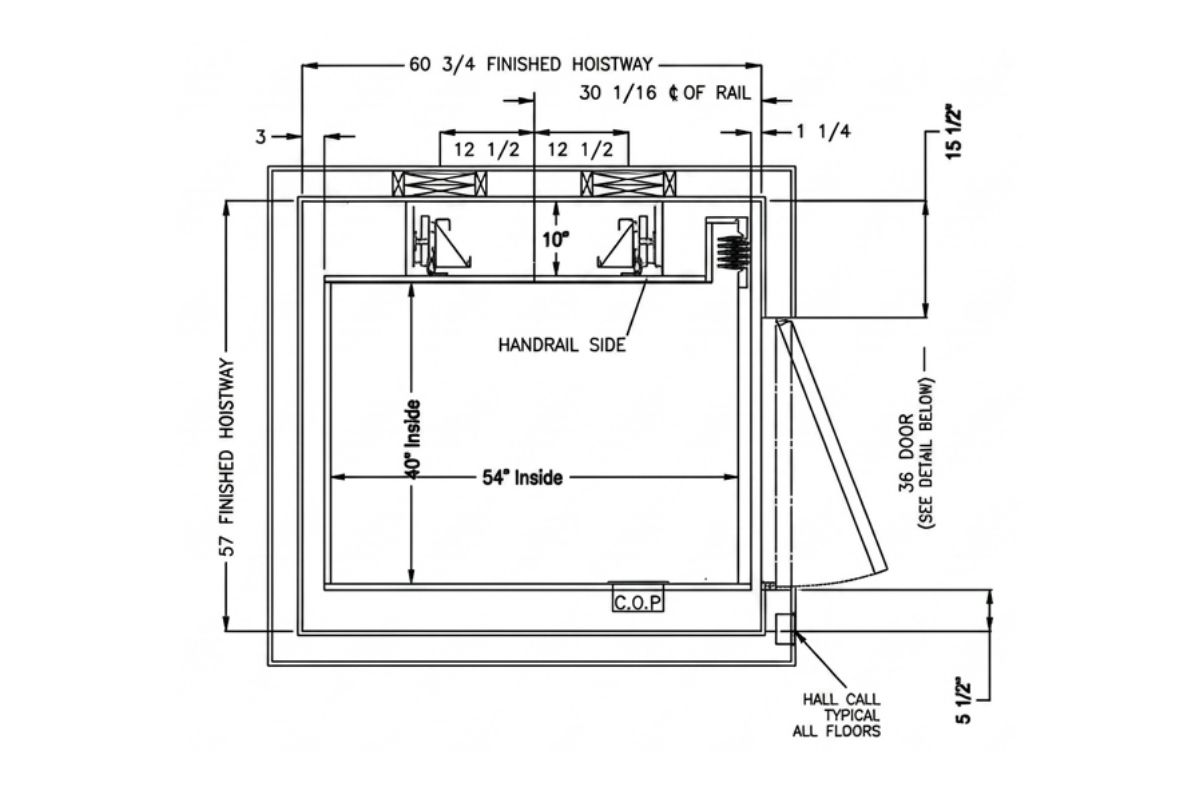

60-x-57-hoistway-rails-right-1

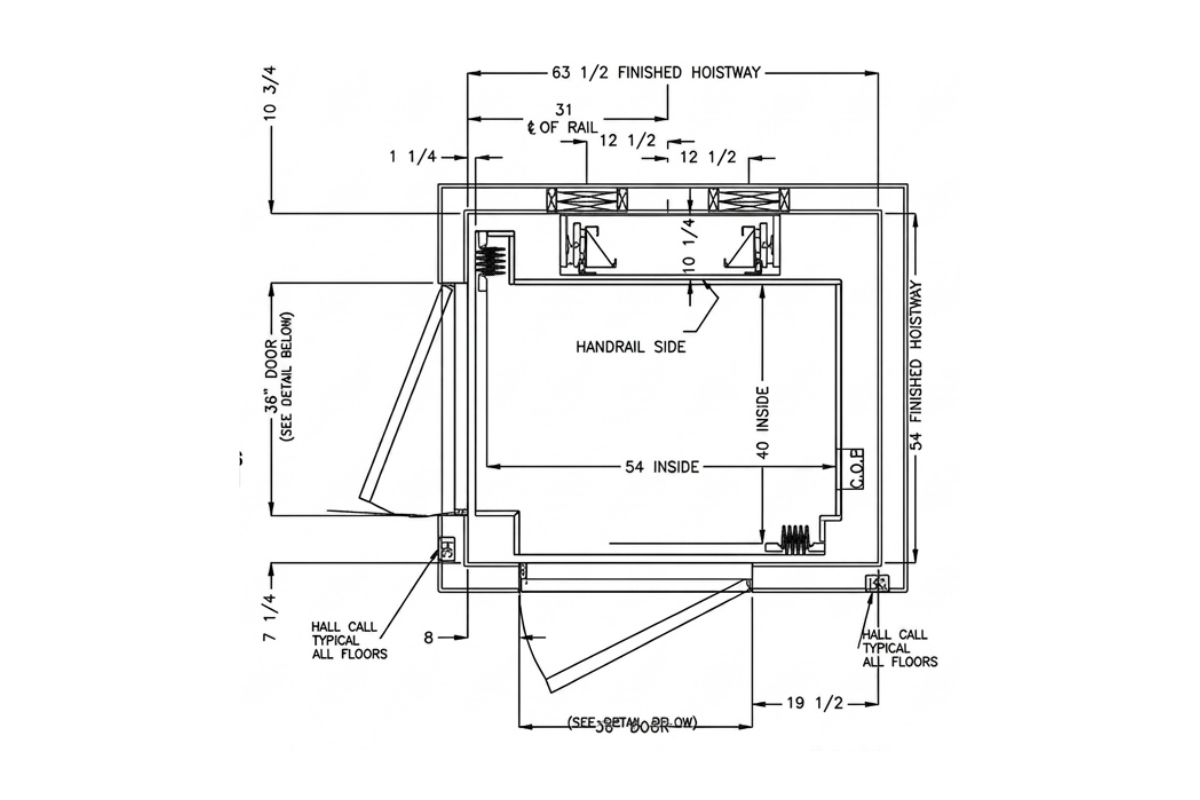

63-x-54-hoistway-2door-90degree-2

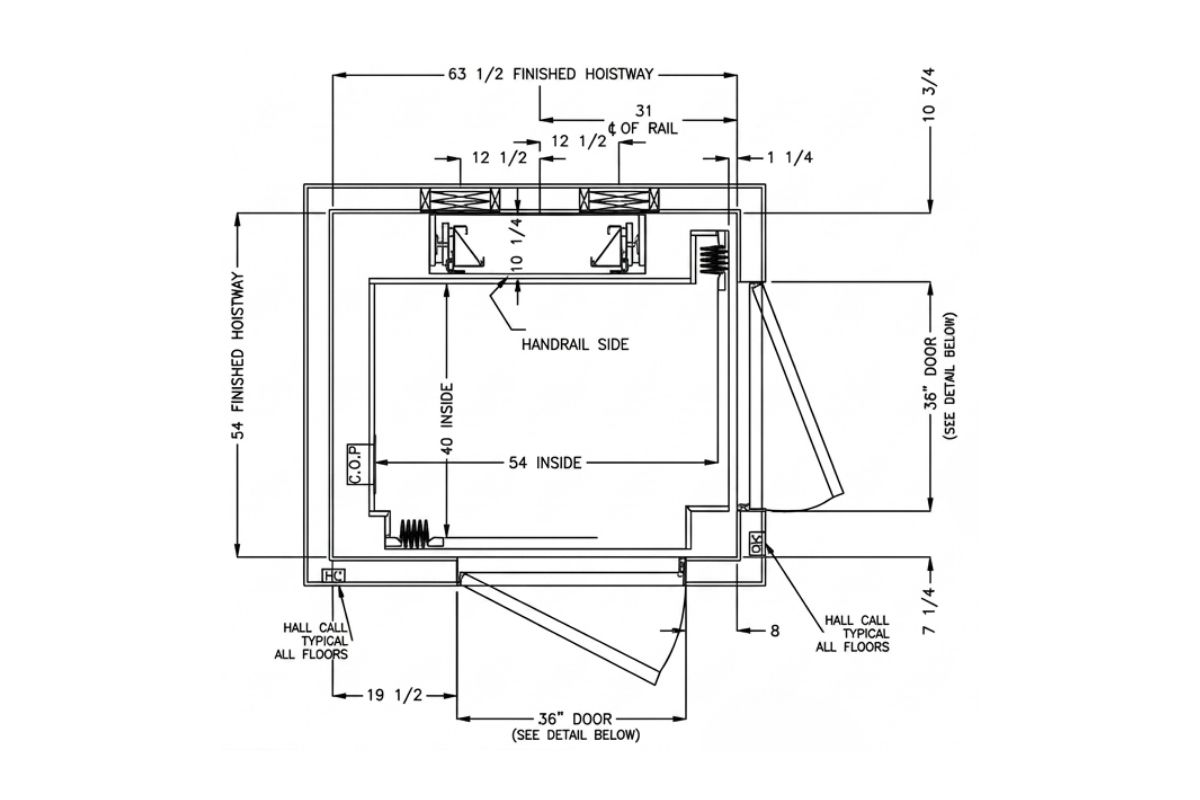

63-x-54-hoistway-2doors-90degree-version2-1

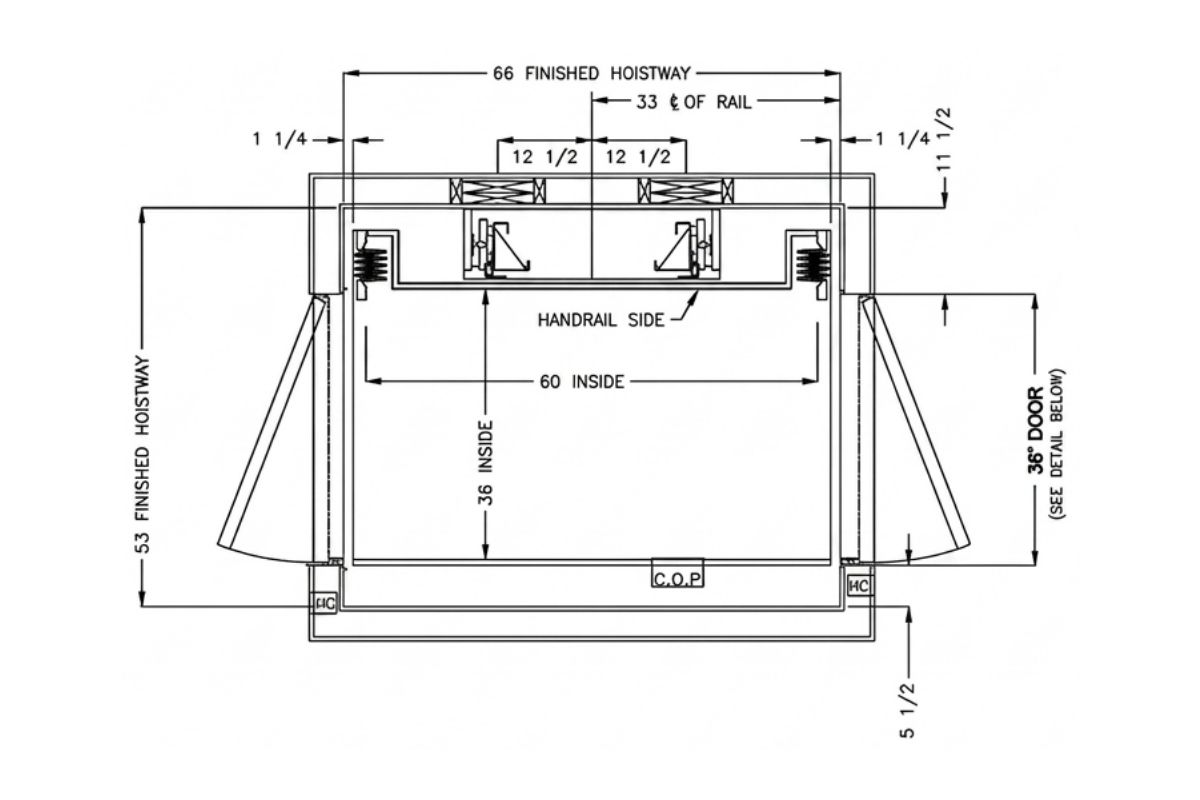

66-x-53-hoistway-2door-opposite-1

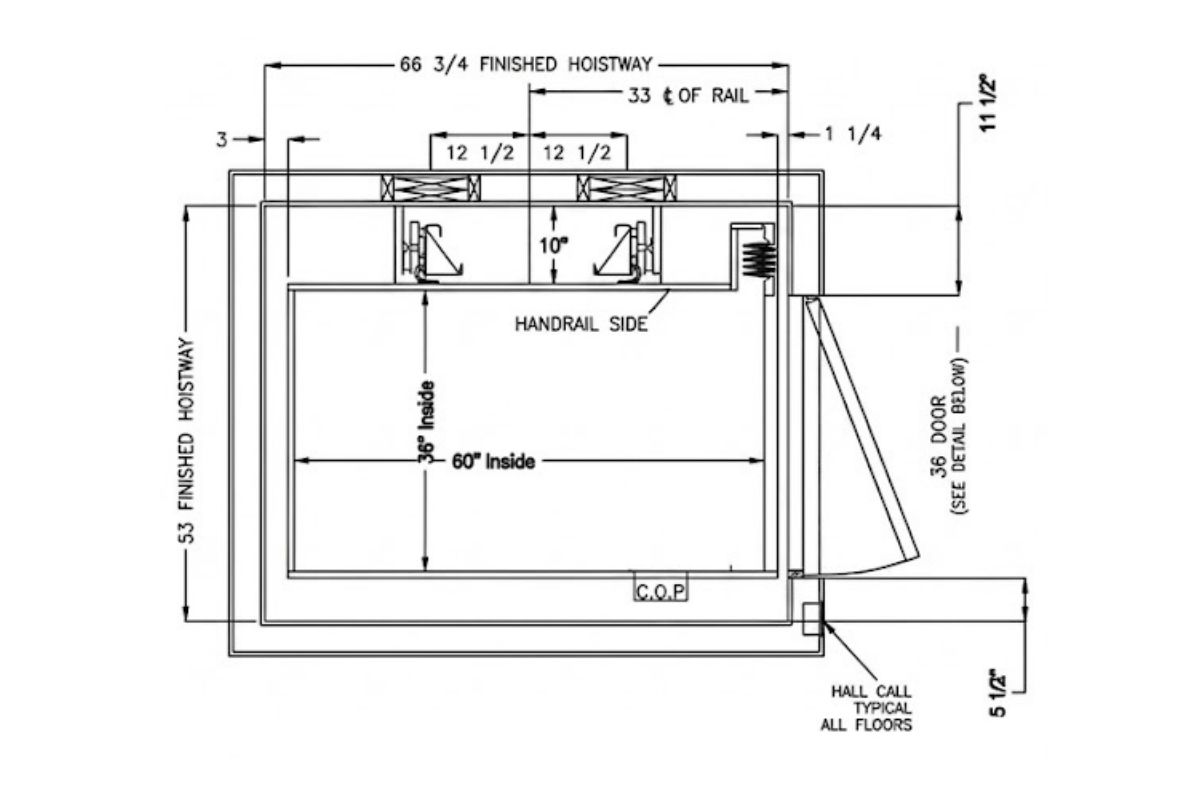

66-x-53-hoistway-rails-right-1

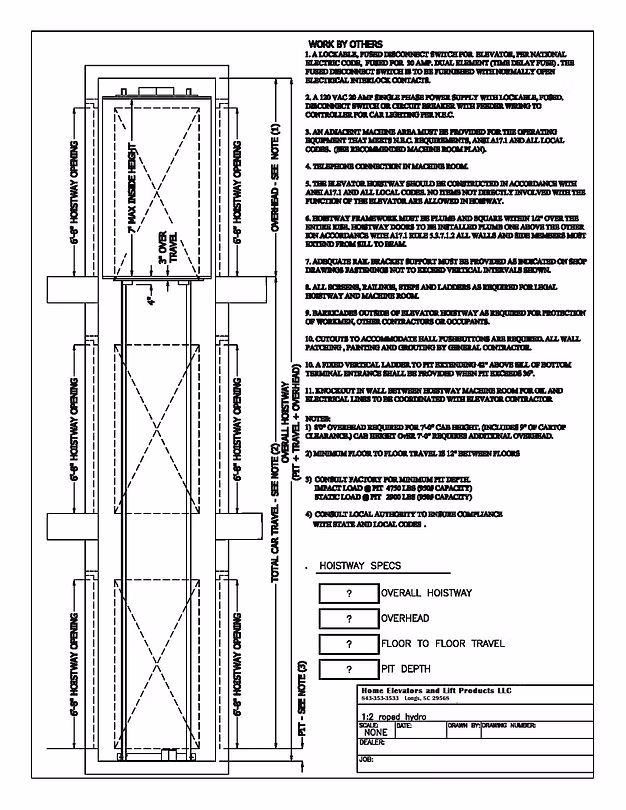

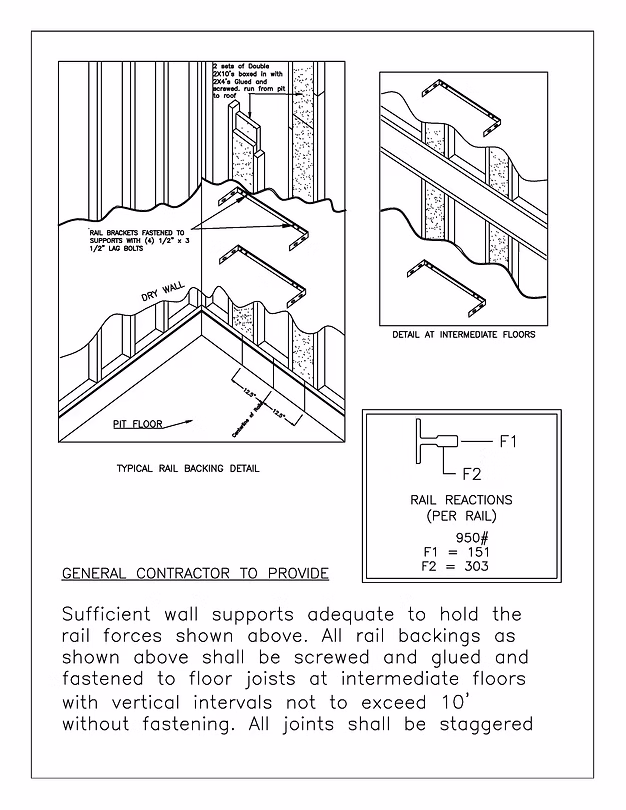

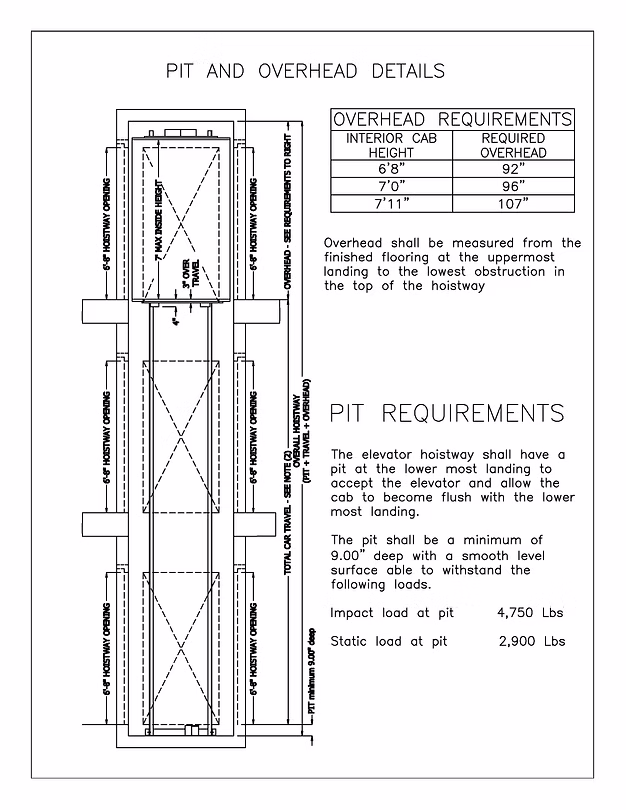

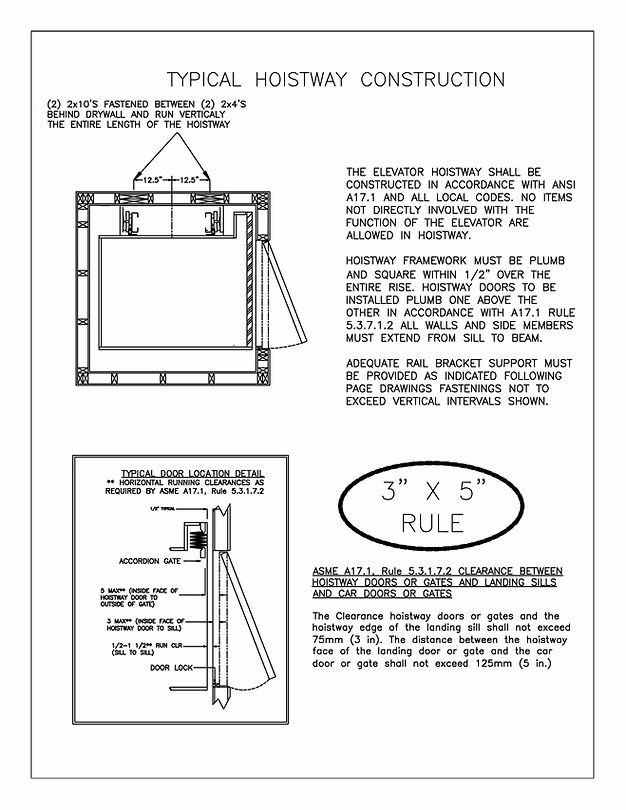

Residential Elevator Prints Hoistway Specifications
